Overview

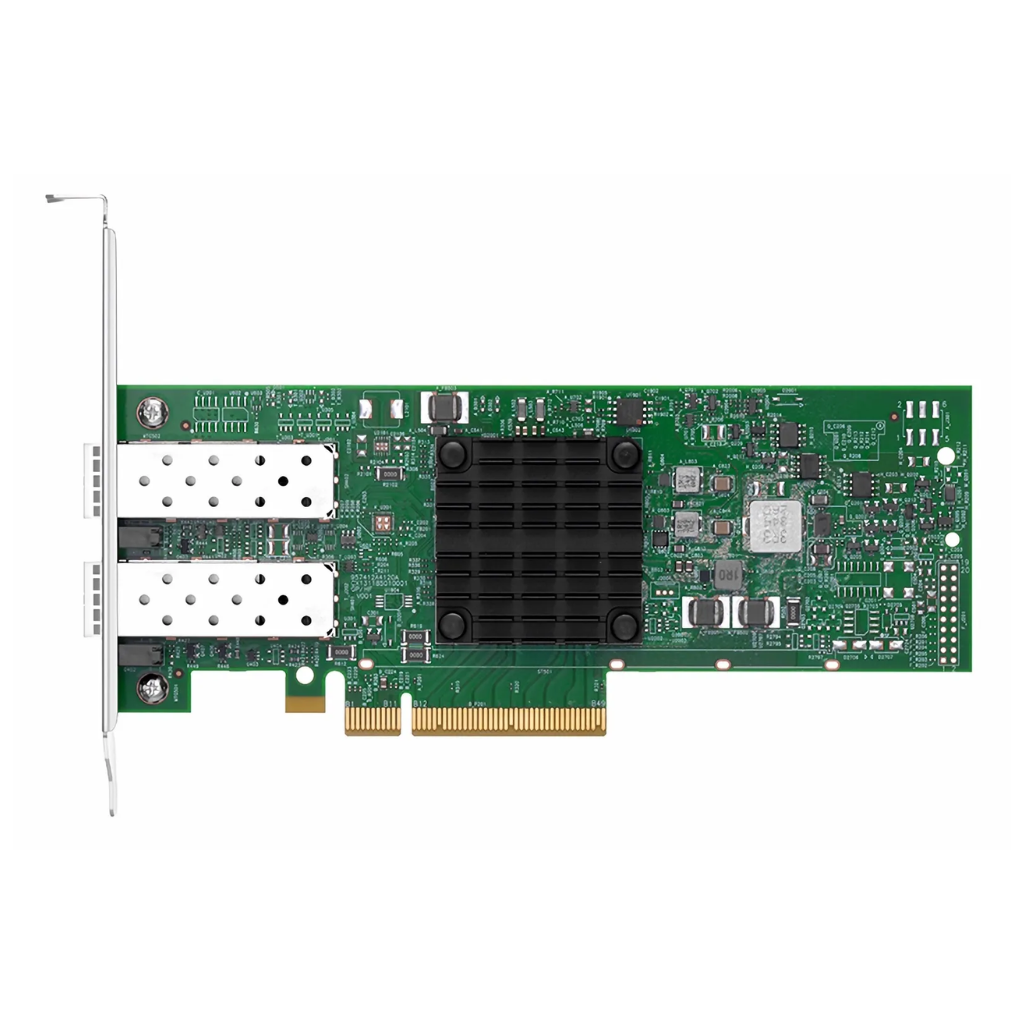

The BCM957412A4120AC is a high-performance dual-port 10 Gb/s Ethernet Network Interface Card (NIC) designed for enterprise servers and high-speed networking applications. With PCIe Gen3 x8 connectivity and support for SFP+ optical or copper connections, it delivers reliable, low-latency network performance suitable for virtualization, storage networks, and high-throughput data environments.
Key Features & Detailed Analysis
1. Dual 10 GbE Ports
- Two independent 10 Gb/s SFP+ ports supporting full-duplex operation
- Compatible with both fiber-optic and direct-attach copper cables
- Enables high-speed connectivity for servers, storage, and switches
2. PCIe Gen3 x8 Interface
- Provides sufficient bandwidth for 10 GbE operations without bottlenecks
- Optimized for modern server platforms requiring high-throughput networking
3. Advanced Network Features
- Supports hardware offloads such as checksum, LSO/LRO/TSO to reduce CPU load
- Multi-queue support for high-performance packet handling
- Virtualization-ready with SR-IOV for VM traffic optimization
- Jumbo frame support up to ~9 KB for efficient large-data transfer
4. Boot & Storage Network Support
- Network boot options include PXE and UEFI
- Compatible with iSCSI storage boot for SAN deployments
5. Form Factor & Compatibility
- PCIe 3.0 ×8 card design for easy integration into servers
- Designed for enterprise and data center-grade reliability
Target Use Cases
1. Enterprise Server Networking
- High-speed connections for virtualized and physical servers
2. Storage Area Networks (SANs)
- Supports iSCSI storage and high-throughput data storage networks
3. Virtualized Environments
- SR-IOV support enables efficient VM networking with minimal CPU overhead
4. High-Performance Computing (HPC)
- Low-latency, high-throughput network for compute clusters
5. Data-Intensive Applications
- Ideal for streaming, backups, and large-file transfers
Summary
Strengths
- Dual-port 10 GbE SFP+ with full-duplex for high-speed networking
- PCIe Gen3 x8 ensures no bandwidth bottleneck
- Supports fiber and direct-attach copper cables
- Advanced offload features reduce CPU utilization
- Virtualization-ready with SR-IOV
- Jumbo frame support (~9 KB) for efficient data transfer
- Supports PXE, UEFI, and iSCSI network boot
Considerations
- Requires SFP+ cables or modules (not included)
- PCIe x8 slot needed; check server compatibility
- Primarily suited for enterprise/data center usage, overkill for standard home networking
Conclusion
The BCM957412A4120AC dual-port 10 GbE NIC delivers robust, low-latency network performance for enterprise servers, virtualized workloads, and storage networks. Its dual-port design, advanced offloads, and virtualization support make it ideal for high-throughput, mission-critical networking environments.
