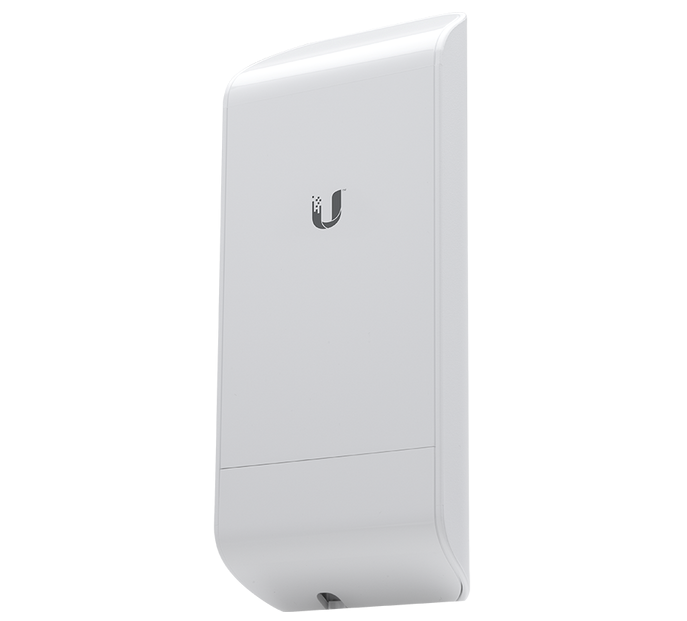

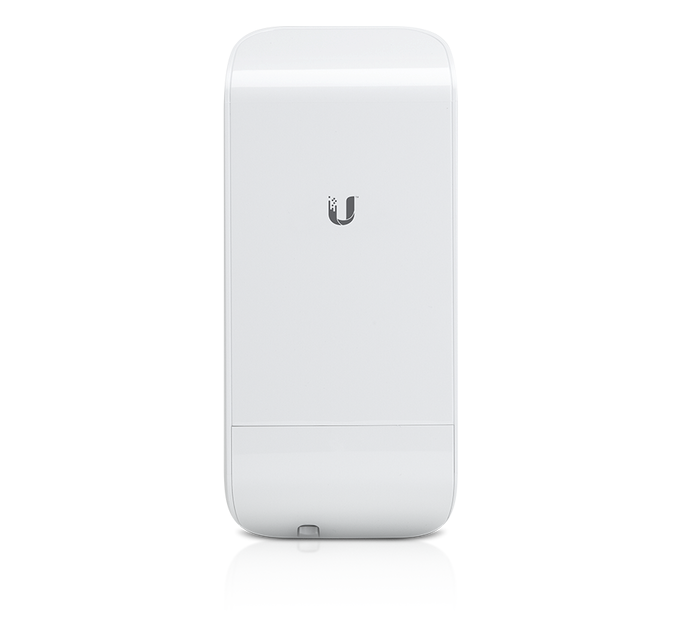

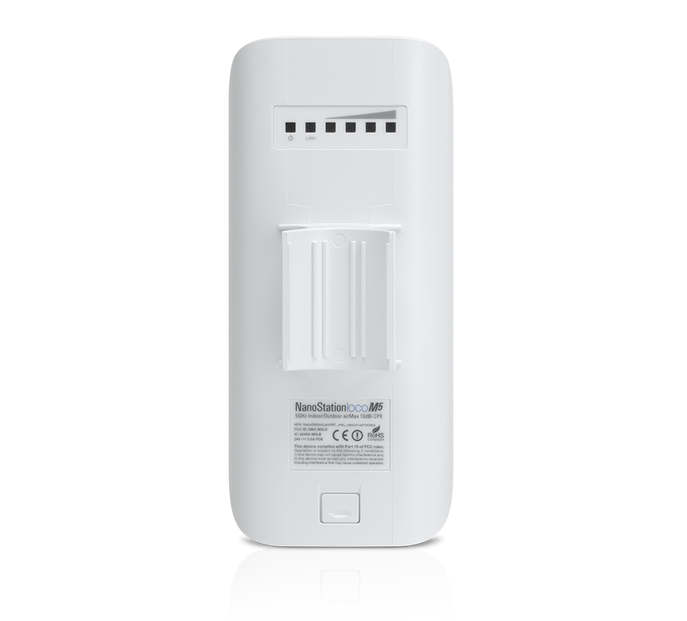

Ubiquiti airMAX NanoStation M5 loco Station
Dimensions: 161 x 31 x 80 mm (6.31 x 1.22 x 3.15")
Weight: 180 g (6.35 oz)
Power Supply (PoE): 24V, 0.5A
Max. Power Consumption: 5.5W
Power Method: Passive PoE (Pairs 4, 5+; 7, 8 Return)
Gain: 13 dBi

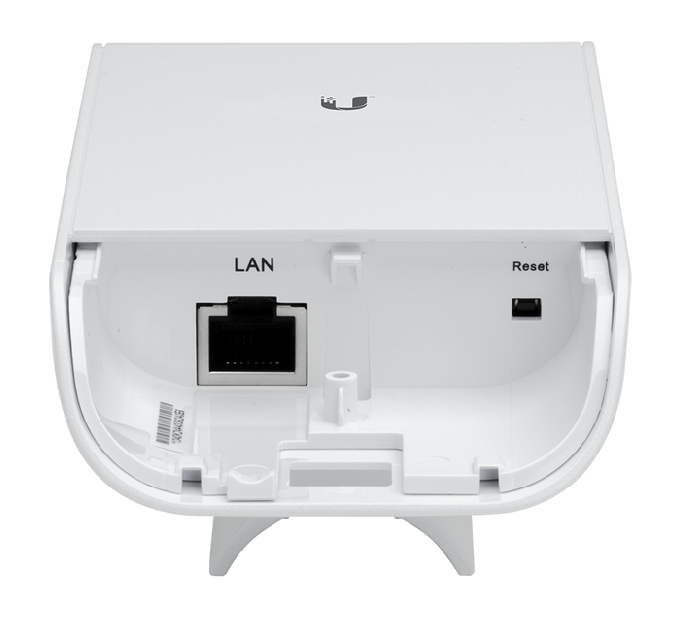

Networking Interface: (1) 10/100 Ethernet Port
Processor Specs: Atheros MIPS 74Kc, 560 MHz
Memory: 64 MB DDR2, 8 MB Flash
Frequency: 5 GHz
Cross-pol Isolation: 20 dB Minimum
Max. VSWR: 1.4:1
Beamwidth: 45° (H-pol) / 45° (V-pol) / 45° (Elevation)
Polarization: Dual Linear
Enclosure: Outdoor UV Stabilized Plastic

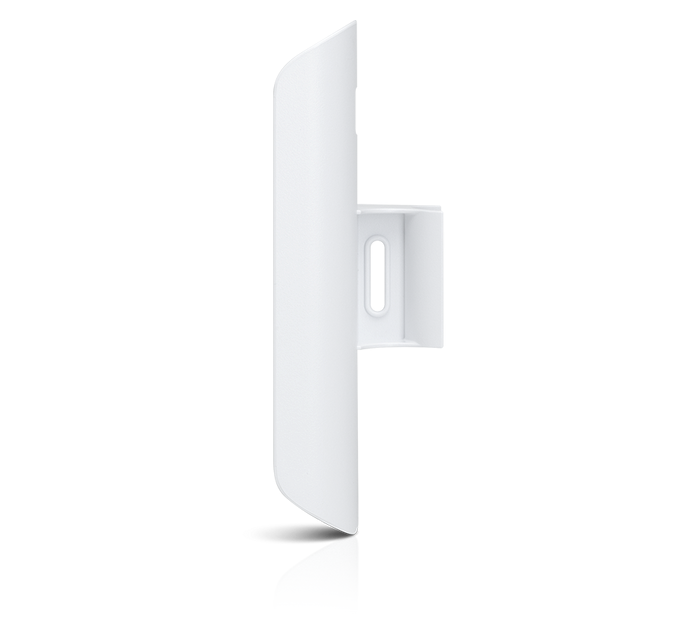

Mounting: Pole-Mount (Kit Included)
Operating Temperature: -30 to 75° C (-22 to 167° F)
Operating Humidity: 5 to 95% Noncondensing
Wireless Approvals: FCC Part 15.247, IC RS210, CE
RoHS Compliance: Yes
Shock & Vibration: ETSI300-019-1.4
