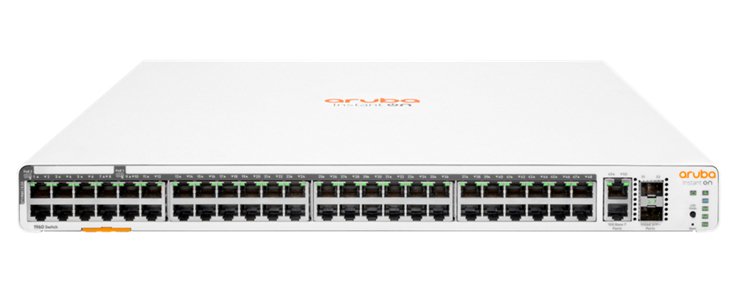

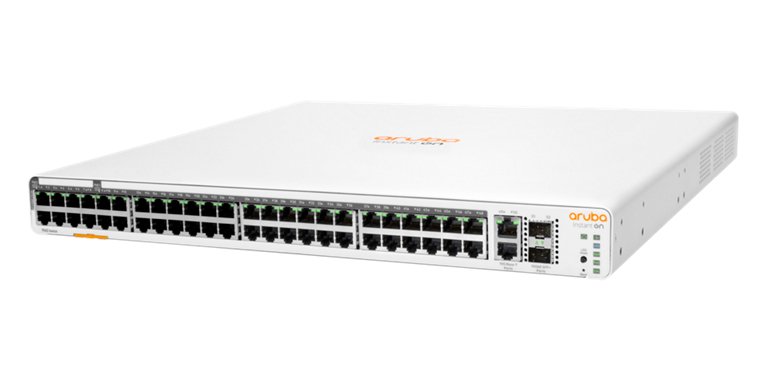

HPE Aruba Instant On 1960 48G 2XGT 2SFP+ 600W Switch
Power Consumption Description: Maximum: 100-127V: 790W
Input Voltage: 100 - 240 VAC
External I/O Ports: 48 RJ-45 10/100/1000 PoE (CL4 and CL6) ports, 2 SFP+ 10GbE ports, 2 10GBASE-T ports
Switching Capacity: 176 Gbps
Stacking Capabilities: 4H height
Throughput: 131 Mpps
Memory and Processor: Single Core ARMv7 Cortex-A9 @800MHz
PoE Capability: Total 600 W PoE Power (Up to 480 W of Class 6 or 600 W of Class 4 PoE)
Management Features: Aruba Instant On Cloud; Web browser; SNMP Manager
Warranty Standard Statement: Limited Lifetime Warranty with 24x7 phone support for 90 days and chat support for the entire warranty duration.
Weight (imperial): 10.8 lb
Weight (metric): 4.9 kg
Product Dimensions (imperial): 15.86 x 17.42 x 1.73 in
Product Dimensions (metric): 40.28 x 44.25 x 4.4 cm
Operating Temperature: 0-40°C, 0-10,000 ft
Specifications
| Warranty | Limited Lifetime |
| Voltage | 100 - 240 VAC |
| Capacity | 176 Gbps |
| Ports | 48 RJ-45 autosensing 10/100/1000 Mbps ports including 8 CL4 and 40 CL6 PoE ports |
| Power Consumption | 100W (maximum) |
| Throughput | 131 Mpps |
| Frequency | 50Hz/60Hz |
